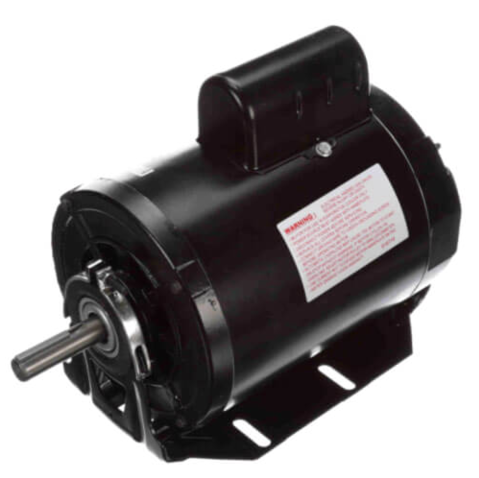

capacitor-start evaporative cooler ac motor
產品品牌：聯嘉電氣
系列：56系列
款式：capacitor-start evaporative cooler ac motor
型號：Evaporative cooler AC motors
服務熱線：13961291308
系列：56系列
款式：capacitor-start evaporative cooler ac motor
型號：Evaporative cooler AC motors
服務熱線：13961291308
♦特別說明：產品圖片以及參數跟實際產品略有差異。
♦定制說明：一切規格按照客戶實際情況或考察后量身定制，支持非標定制。
♦庫存配送：有貨，全國送貨保障！
♦溫馨提示：本產品一經下單生產，非質量問題不支持退貨！
♦定制說明：一切規格按照客戶實際情況或考察后量身定制，支持非標定制。
♦庫存配送：有貨，全國送貨保障！
♦溫馨提示：本產品一經下單生產，非質量問題不支持退貨！
產品描述
Evaporative cooler AC motors power the fans inside evaporative coolers, also known as swamp coolers. The fans move air into the unit to cool the air and then recirculate it into the surrounding area. They are commonly used to replace damaged evaporative cooler AC motors.
Features:
Brass current carrying terminal board parts
Electro-zinc plated governor parts, dust caps, terminal board cover
High viscosity encapsulating varnish
No frame ventilation openings in the top portion of the frame
Single and two speed
Moisture resistant terminal board
Heavy magnet wire insulation
Class B insulation
Continuous filtration of oil
7-1/2’’ ring to ring dimension
2 -Speed
Capacitor-Start Evaporative Cooler AC Motors 2 -Speed, sorted by HP, descending
HP | Nameplate RPM | Voltage | Frame | Shaft Dia. | Motor Shaft Rotation | Motor Mounting Type | ||
|---|---|---|---|---|---|---|---|---|
3/4, 1/4 | 1,725/1,140 | 115V AC | 56 | 5/8 in | CWSE | Ring | ||
3/4, 1/4 | 1,725/1,140 | 230V AC | 56 | 5/8 in | CWSE | Ring | ||
1, 1/3 | 1,725/1,140 | 230V AC | 56 | 5/8 in | CWSE | Ring | ||
1 | 1,725/1,140 | 115V AC | 56Z | 5/8 in | CCWLE | Cradle Base | ||
1-1/3 | 1,725/1,140 | 230V AC | 56Z | 5/8 in | CW/CCW | Cradle Base |
