系列：140系列
款式：
型號：Unit Heater Fan Motor
服務熱線：13961291308
♦定制說明：一切規格按照客戶實際情況或考察后量身定制，支持非標定制。
♦庫存配送：有貨，全國送貨保障！
♦溫馨提示：本產品一經下單生產，非質量問題不支持退貨！
產品描述

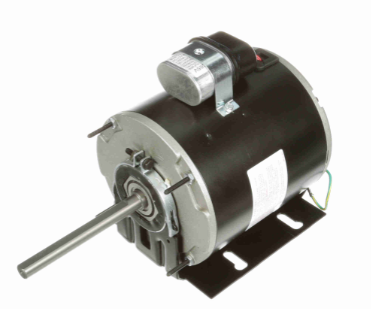

Unit Heater Fan Motor
5.6" Diameter - 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 4 Mfd-370 Volts (Supplied with Motor)
Thermally Protected
Totally Enclosed Air over
Class B Insulation, 60°C Ambient
Ball Bearing
1/2" Diameter Shaft with Flat
5.5" Leads
Resilient Base
FLA Cat.
HP RPM S peeds Volts Base Rotation @ NP
1/6 1075 3 115 1RR CCW 2.4
1075 1 115 2RR CCW/CW 2.2
1/4 1075 1 115 2RR CCW/CW 3.3
1075 1 208-230 2RR CCW/CW 1.4
1/3 1075 1 115 2RR CCW/CW 4.9
1075 1 208-230 2RR CCW/CW 2.0
